Car

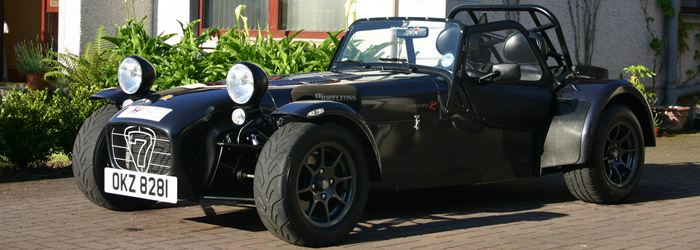

Caterham 7 Duratec R

Form
Self built


Bodywork
Aluminium Body

GRP nosecone, rear arches and cycle wings

Colour
Graphite Grey


Engine
Ford Duratec HE 2000cc I4

Modifications
Ported head

Saenz steel rods with ARP con rod bolts

Forged pistons

Uprated shells and bearings

Crank keyed by Raceco

Ultra lightweight steel flywheel (3.8kg)

ARP flywheel bolts

Balanced by Stephen Patton Motorsport

ARP main stud kit

EGR valve removed and port blanked

Brise lightweight alternator

Ford starter motor


Induction
Raceline 45mm direct to head throttle bodies

ECU
Emerald K3 ECU

Exhaust System
Raceline 4-2-1 exhaust

Lubrication
Raceline Wet Sump System

Max Power
239bhp @ 7700rpm

Max Torque
xxxft/lb @ xxxxrpm

Max Speed
140mph

0-60
4.0 seconds (estimated)


Gearbox
BGH Pro Road and Track close ratio Type 9

Alloy main case and top cover

Ratios
1st (2.66:1)

2nd (1.75:1)

3rd (1.21:1)

4th (1.00:1)

5th (0.86:1)


Clutch
Hydraulic AP Racing 8.5" HD Fast Road

Differential
Ford diff (3.92:1)


Steering
Rack and Pinion - 1.93 turns lock to lock


Rear Suspension
De dion rear suspension

Adjustable coil over Protech shock absorbers

165 lb/in springs

Adjustable anti roll bar


Front Suspension
Wide Track Independant double wishbones

Caterham aluminium uprights

Adjustable coil over Protech shock absorbers

250 lb/in springs

Anti roll bar


Brake System
AP race master cylinder

Front Brakes
AP 4 pot aluminium calipers with AP pads

Ventilated discs

Rear Brakes
Caterham std calipers with uprated pads

Solid discs


Instruments
Standard Caterham guages

Std Caterham shift light


Interior
Leather seats and tunnel top

Carbon fibre internal panels and sill protectors


Safety
Caterham FIA Roadsport Cage

Caterham 4pt harnesses

Hand held fire extinguisher


Wheels
Caterham 8-spoke lightweight alloys

6x13" Front 8x13" Rear (Anthracite)

Tyres
Toyo R888

185/60 R13 (Front) 205/60 R13 (Rear)


Overall Length
3500mm

Overall Width
1575mm

Overall Height
1060mm

Wheelbase
2225mm

Ground Clearance
110mm

Weight
540 kgs with full tank of fuel


Power to Weight
442bhp / tonne


Optional Extras
Black Pack

Carbon fibre stone guards

"Big Red" Starter Button

Autocom intercom system inc. 2 way radio

Momo steering wheel
